INSTALLATION

Non-Drill Clutch

STEP 1

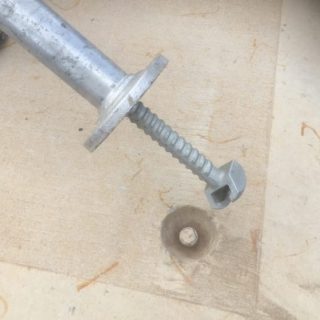

Unscrew clutch to approx 120mm
Non-Drill Clutch

STEP 2

Hold post at an angle to connect clutch to lifting anchor
Non-Drill Clutch

step 3

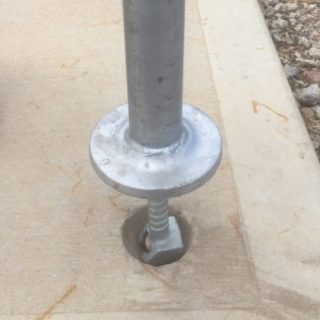

Move post to upright position
Non-Drill Clutch

step 4

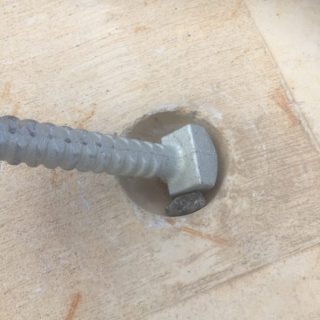

If connecting to a circular recess, on occasion the post may keep turning. A simple tip to avoid this is to place a pebble beside the clutch
Non-Drill Clutch

step 5

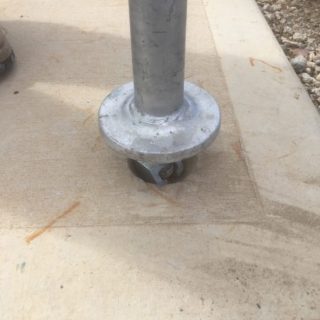

Tighten post down clockwise. Hand-tight is sufficient for temporary handrails. Use stencil on bottom of post for extra tightening if required
Non-Drill For Edge Protection

step 6

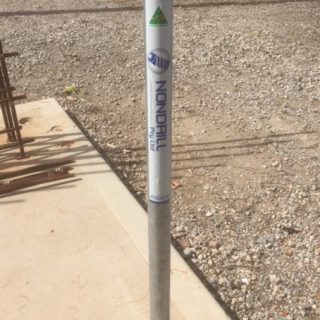

Non-Drill stickers (showing 450mm and 900mm markings for placing handrail) can be supplied
